2013 CAMOPLAST TATOU ATV T4S FRONT LEFT & RIGHT

Name Thumbnail SKU Quantity Price Add to Cart Button
01 - STABILIZING ROD ASS'Y (METRIC) 01 - STABILIZING ROD ASS'Y (METRIC) 1001-00-7102 $112.95
02 - INJECTION SPROCKET, 15 TEETH 02 - INJECTION SPROCKET, 15 TEETH 1009-00-7115 $94.95
03 - SPROCKET 16 TEETH 4S 03 - SPROCKET 16 TEETH 4S 1009-00-7116 $94.95
04 - SPROCKET 17 TEETH 4S 04 - SPROCKET 17 TEETH 4S 1009-00-7117 $94.95
05 - SPROCKET 18 TEETH 4S 05 - SPROCKET 18 TEETH 4S 1009-00-7118 $94.95
06-A - RH FRONT FRAME TATOU 4S Placeholder 1010-00-7222 $429.95
06-B - LH FRONT FRAME TATOU 4S Placeholder 1011-00-7222 $429.95
07 - TENSIONER | Part # 1014-00-7222 Placeholder 1014-00-7222 $42.95
08 - STABILIZER 08 - STABILIZER 1015-00-7010 $50.95
09 - STABILIZER W/ WHEELS ASS'Y 09 - STABILIZER W/ WHEELS ASS'Y 1015-00-7153 $122.95
10 - 134MM INJECTION WHEEL ASS'Y 10 - 134MM INJECTION WHEEL ASS'Y 1016-00-0134 $35.95
11 - 202MM INJECTION WHEEL ASS'Y 11 - 202MM INJECTION WHEEL ASS'Y 1016-00-0202 $48.95
12 - FRAME TAIL PLASTIC CAP 12 - FRAME TAIL PLASTIC CAP 1017-00-0001 $5.95
13 - PLASTIC WHEEL CAP 1'' 13 - PLASTIC WHEEL CAP 1'' 1017-00-0005 $5.45

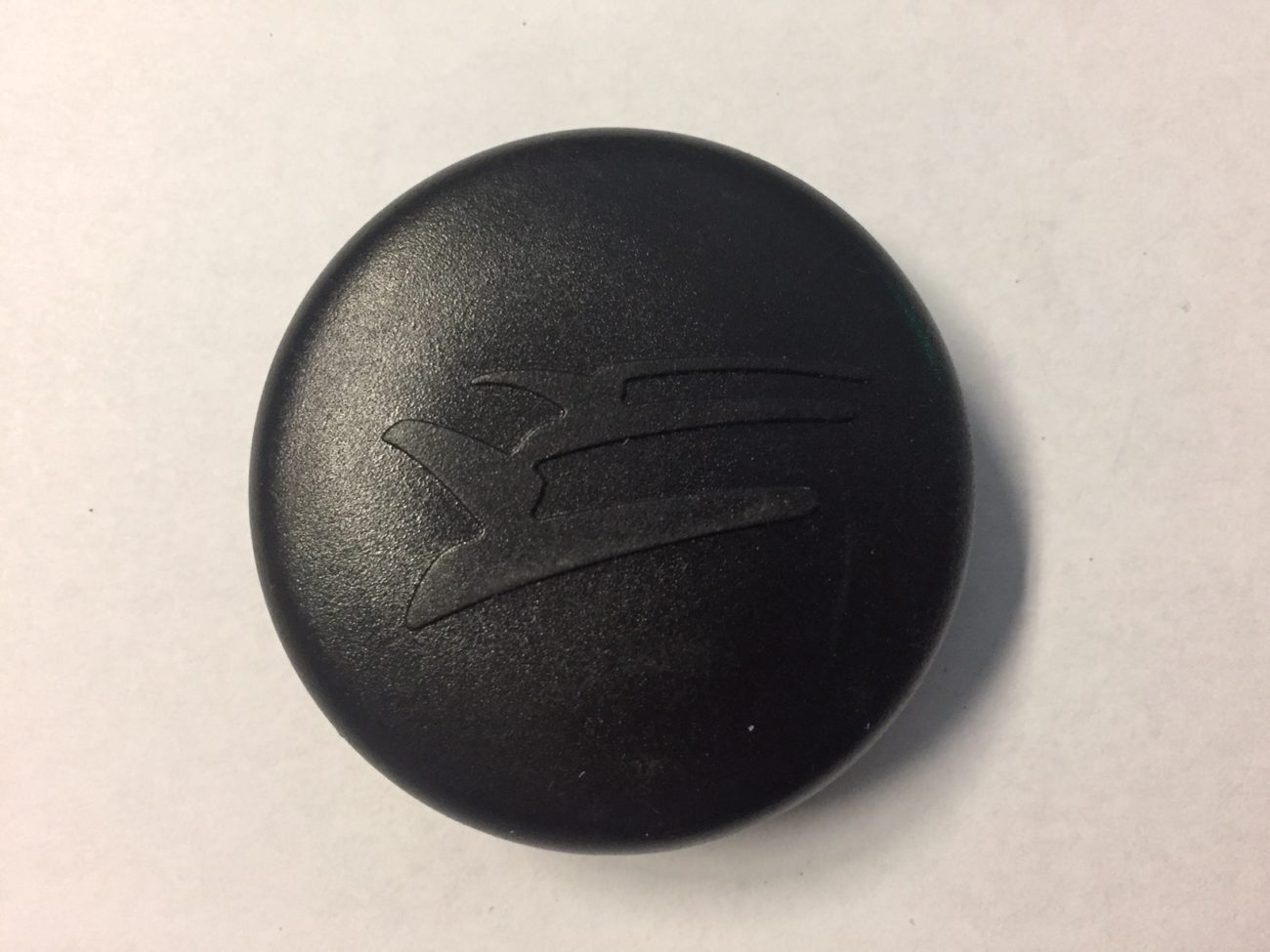

14 - PLASTIC FRAME CAP 2" 14 - PLASTIC FRAME CAP 2 1017-00-0010 $5.65
15 - 2 LIPS CAP, 2" O.D. TUBE (TPV/101-64) 15 - 2 LIPS CAP, 2 1017-00-0110 $4.95
16 - HUB CAP ASS'Y BLUE 16 - HUB CAP ASS'Y BLUE 1017-00-7081 $10.95
17 - POLARIS SPINDLE HUB, ASS'Y 17 - POLARIS SPINDLE HUB, ASS'Y 1019-05-0010 $164.95
18 - MULTI HUB MODEL ASS'Y (METRIC) 18 - MULTI HUB MODEL ASS'Y (METRIC) 1019-77-0031 $164.95
19 - HEX SCR W/WASH / HCSW, M10-1.5X25, 8.8, ZP, TL, DIN933 19 - HEX SCR W/WASH / HCSW, M10-1.5X25, 8.8, ZP, TL, DIN933 1033-10-2026 $2.45
20 - HFCS, M8-1.25X80, 10.9, ZP, IFI536 Placeholder 1035-08-C080 $3.45
21 - SERRATED HEX SCR /HFSCS, M10-1.5X30, 10.9, ZP, TL, DIN 6921 21 - SERRATED HEX SCR /HFSCS, M10-1.5X30, 10.9, ZP, TL, DIN 6921 1036-10-4030 $2.45
22 - HEX FLG SCR / HFSCS, M12-1.75X30, 10.9, ZP, TL, DIN 6921 22 - HEX FLG SCR / HFSCS, M12-1.75X30, 10.9, ZP, TL, DIN 6921 1036-12-4030 $3.95
23 - WAFER SQ DR DRILL SCR / SDSQWS, #12-24X1.5, ZP 23 - WAFER SQ DR DRILL SCR / SDSQWS, #12-24X1.5, ZP 1049-00-0007 $2.45
24 - BUSHING / 390 X ,625 X 0,940L 24 - BUSHING / 390 X ,625 X 0,940L 1050-00-0011 $3.45
25 - SLIDE BUSHING 25 - SLIDE BUSHING 1050-00-0016 $3.95
26 - BUSHING SPINDLE HUB 26 - BUSHING SPINDLE HUB 1051-00-0037 $9.95
27 - TENSIONER BUSHING 27 - TENSIONER BUSHING 1051-00-0111 $7.95
28 - WASHER / 1.625, 0.515, 11ga 28 - WASHER / 1.625, 0.515, 11ga 1061-00-0353 $2.95
29 - HEX FL NY NUT / FNN, M8-1.25, 8, ZP, DIN6926 29 - HEX FL NY NUT / FNN, M8-1.25, 8, ZP, DIN6926 1074-08-0001 $2.95
30 - WHEEL AXLE 30 - WHEEL AXLE 1082-00-7001 $13.45
31 - TRACK TENSIONER AND NUTS ASS'Y 31 - TRACK TENSIONER AND NUTS ASS'Y 1082-00-7050 $11.95
32 - WHEEL AXLE - WHEEL ASS'Y 32 - WHEEL AXLE - WHEEL ASS'Y 7082-00-7530 $41.95
33 - STICKER / TATOU ATV T4S Placeholder 1083-00-7375 $3.45
34 - STICKER - SERIAL NUMBER Placeholder
35-A - STICKER - FRONT LEFT PICTOGRAM Placeholder 1083-00-8100 $2.45
35-B - STICKER - FRONT RIGHT PICTOGRAM Placeholder 1083-00-8110 $2.45
36 - STICKER - WARNING Placeholder 1083-00-8302 $2.45
37 - TRACK GUIDE 37 - TRACK GUIDE 1085-00-7010 $54.95
38 - STANDARD BEARING 38 - STANDARD BEARING 1090-00-0001 $15.95
39 - RUBBER CONE SBR 39 - RUBBER CONE SBR 1093-00-7000 $7.95
40 - DOUBLE LIPS SHAFT SEAL 40 - DOUBLE LIPS SHAFT SEAL 1093-00-7002 $3.95
41 - WHEEL SEAL (25 ID X 42 OD) 41 - WHEEL SEAL (25 ID X 42 OD) 1093-00-7009 $2.95

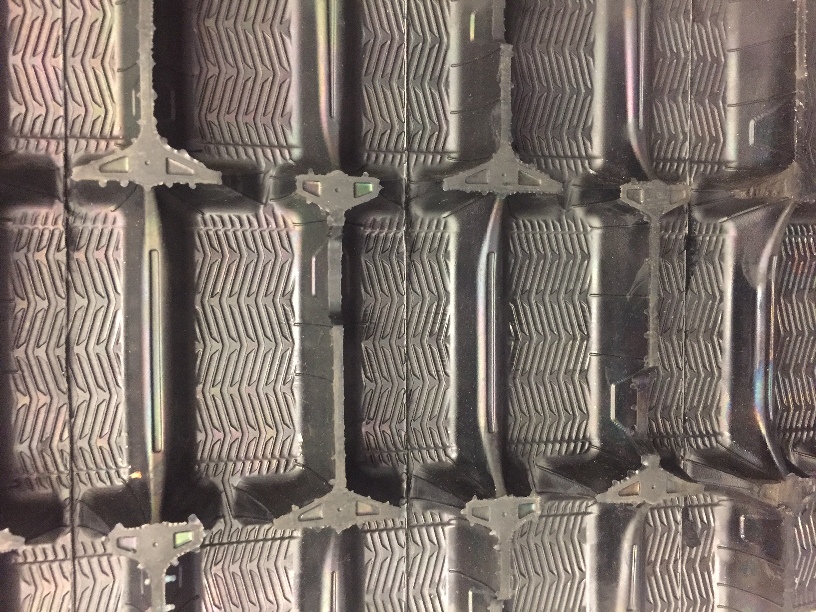

42 - TRACK - 11.5 x 93.38 x 1.00 (9150S) 42 - TRACK - 11.5 x 93.38 x 1.00 (9150S) 1093-00-7600 $554.95
A - THREADED ROD, STABILIZING ROD A - THREADED ROD, STABILIZING ROD 1000-00-7002 $35.95
B - HEX BOLT / HCS, M10-1.5X60, 10.9, ZP, DIN931 B - HEX BOLT / HCS, M10-1.5X60, 10.9, ZP, DIN931 1033-10-1060 $2.95
C - STABILIZING ROD SHORT BOLTS KIT C - STABILIZING ROD SHORT BOLTS KIT 1033-AS-0025 $12.95
D - ROD END, M12-1.25 D - ROD END, M12-1.25 1047-00-7010 $20.95
E - ROD END SPACER E - ROD END SPACER 1050-00-0013 $3.45
F - WASHER / 8, ZP, 7/16 ID x 1 OD x 0,072 T F - WASHER / 8, ZP, 7/16 ID x 1 OD x 0,072 T 1060-00-0004 $2.45
G - HEX NUT NYLON / NN, M20-2.5, ZP, DIN982 G - HEX NUT NYLON / NN, M20-2.5, ZP, DIN982 1071-20-0001 $3.45
H - HEX THIN NUT / JN, 12-1.25, ZP, DIN439B H - HEX THIN NUT / JN, 12-1.25, ZP, DIN439B 1073-12-3002 $2.95
I - HEX FL NY NUT / FNN, M10-1.5, 8, ZP, DIN6926 I - HEX FL NY NUT / FNN, M10-1.5, 8, ZP, DIN6926 1074-10-0001 $2.95
J - STABILIZING ROD SPRING Placeholder 1080-00-0002 $14.95
K - RUBBER DAMPER BONDED W/WASHER K - RUBBER DAMPER BONDED W/WASHER 1093-00-7007 $8.95
